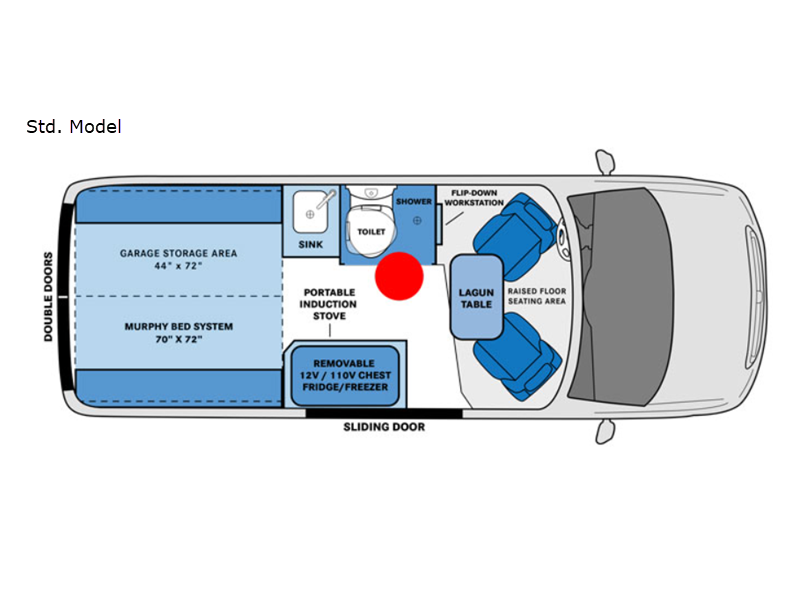

Std. Model Floorplan
Specifications
Sleeps | 2 | Length | 19 ft 5 in |
Ext Width | 7 ft 1 in | Ext Height | 9 ft 4 in |
Int Height | 6 ft 3 in | Exterior Color | Selenite |
GVWR | 9050 lbs | Cargo Capacity | 1650 lbs |
Fresh Water Capacity | 40 gals | Grey Water Capacity | 10 gals |
Tire Size | 245/75R16 | Furnace BTU | 11500 btu |
Fuel Type | Diesel | Engine | 3.0L V6 |
Chassis | Mercedes-Benz Sprinter 2500 4X4 | Horsepower | 188 hp |
Fuel Capacity | 24.5 gals | Wheelbase | 144 in |
Available Beds | Murphy Bed System | Torque | 325 ft-lb |
Refrigerator Type | Truma Top Loading Fridge/Freezer | Refrigerator Size | 2.1 cu ft |
Cooktop Burners | 1 | Number of Awnings | 1 |
LP Tank Capacity | 20 lbs | Water Heater Type | Truma AquaGo Comfort Plus Instant |
Awning Info | Power w/LED Lights | Gross Combined Weight | 13930 lbs |
Shower Type | Wet/Bath Shower | Electrical Service | 30 amp |
VIN | W1W4EBVYXMP396808 |
Description
Pleasure-Way REKON 4X4 Class B diesel motorhome Std. Model highlights:
- 124 Cu. Ft. Garage Storage Area
- Removable Murphy Bed System
- Private Wet Bath/Gear Locker
- Lagun Table Mount System
- L-Track Tie Down System
- 11" Ground Clearance
Outdoor enthusiasts will love all that this adventure van has to offer to be able to drive on any terrain! And the interior features are just as impressive with the Murphy bed system with a 70 x 72" rear bed that easily folds down to sleep at night and leaves 54 cubic feet of garage storage below. You even have the choice to remove one of the sides to the bed to give yourself more living space when traveling solo, and by removing the driver side single bed cushions, this area becomes a workstation for kitchen prep. You can stay refreshed using the multi-function wet bath/gear locker which gives you a 5-gallon cassette toilet, handheld showerhead, a ducted heat vent for drying, and a removable shelf and closet rod storage system. You can also dine at the Lagun table while sitting on the driver and passenger seats that swivel to face the rear.
With the REKON 4X4 Class B diesel motorhome by Pleasure-Way, uncharted terrain is what you will seek! When over-landing and boon-docking, you will have a 40-gallon fresh water tank, four 100Ah Eco-Ion Earth Smart lithium (LiFePO4) coach batteries, a 400W solar panel package, and a Xantrex 2000W pure-sine wave inverter to keep you supplied with water and power for longer periods of time. The 3M Thinsulate insulation is used throughout the interior to reduce exterior noise and offer a superior weather seal, plus the Truma VarioHeat furnace is ducted for better heat dispersion and warmth during the cooler traveling months. This and more features are what make the REKON a true four-seasons RV. The interior is just as impressive with plenty of headroom, soft cargo nets for storage, a durable workstation to be utilized various ways, a Truma AquaGo Comfort Plus water heater and more. Start your 4X4 adventure today!
Features
Standard Features
Interior
- Removable murphy bed system: 70" x 72"
- Lagun table mount system w/ 360° swivel tabletop
- Flip-down workstation (driver’s seat)
- Privacy/sun shades for windshield & cab doors
- Side and rear door roll-up screens
- Blum® cabinet hinges
- Flush-mount laminate cabinet doors
- Laminate-wrapped kitchen & wall partitions
- Premium vinyl flooring
- Vinyl soft touch headliner
- 3M Thinsulate™ insulation
- Fire extinguisher
- LP, CO & Smoke detectors
Galley
- 2.1 cu. ft. top-loading Truma 12V / 110 portable fridge/freezer (holds 60L or 96 cans)
- Portable 1-burner induction stove
- 13" x 11" stainless steel sink
- High-arc, single-handle faucet
- Large storage drawer under fridge w/ soft close
- 72" x 22.5" fold-down garage workstation
- King StarBoard® marine-grade polymer surfaces
Bathroom
- Private enclosed wet bath w/ shower
- Shower curtain
- Handheld showerhead
- 5 Gal. Thetford cassette toilet w/ swiveling bowl
- Flexible shelving system w/ removable closet rods
- Ducted heat
Electrical
- Multiplex wiring
- Dimmable LED lighting
- Dual 10-inch touchscreen control panels
- 4 x 100Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
- 400-Watt solar panel package
- Go Power!® MPPT solar controller
- Xantrex™ 2000-Watt Pure-sine wave inverter
- Mastervolt Mac Plus DC-DC converter
- 80-amp lithium charger
- 12-volt coach battery disconnect
- Charge line disconnect (solar and alternator)
- 30-amp power cord
- USB charging ports
- 12V auxiliary power outlet
- 7 x 110-120V power outlets
- AC distribution panel
- DC load center
Touchscreen Control Panel
- 10-inch full-color display
- Coach battery state-of-charge meter
- Coach battery temperature gauge
- Estimated time until full charge read-out
- Remaining runtime for DC power read-out
- Real-time 12-volt net loss/gain amperage meter
- Solar charger controls and monitoring
- Dimmable LED light banks
- Tank level monitoring for fresh water
- Climate control center w/ thermostat
- Truma AquaGo® comfort plus water heater controls
- Water pump, awning and vent controls
- DC electrical system diagnostics
Exterior
- 400-Watt solar panel package
- LED perimeter lighting (4 lights)
- Power awning w/ LED lights
- Exterior shower w/ handheld wand
- 110-120 volt power outlet
- Utility center (LP switch, 30-amp power outlet, city water connection)
- Black Rhino Havasu rims
- Toyo all-terrain tires: 245/75R16
- Tubular aluminum running boards
- Undermount spare tire
Heating, Ventilation, & Cooling
- Truma VarioHeat 11,500 BTU furnace
- Dual bi-directional Fan-tastic Vent fans w/ rain sensor
Plumbing & Liquid Propane Systems
- Shurflo® automatic demand water system
- Truma AquaGo® comfort plus instant water heater
- Water heater bypass valve
- Interior fresh water tank with ducted heat
- Fresh water tank level monitoring
- No exterior water lines or tanks
- Four season coach
- LP BBQ quick connect
- Removable LP tank: 20 lbs. / 17.8 L
Rear Seating Area
- Bed up garage storage area: 124 cu. ft.
- Bed down garage storage area: 52 cu. ft.
- Garage storage lighting
- L-track tie-down system
- Expansive cargo net storage system
Chassis
- Chassis Model - Mercedes-Benz Sprinter 2500 4x4
- Engine - 3.0 L V6 Diesel
- HP Rating - 188 HP
- Torque Rating - 325 ft-lb
- Wheelbase - 144"
- Transmission - 7-speed automatic
- Fuel Type - Diesel
- Braking System - 4-wheel Disc brakes w/ ABS
- Stability and Traction - Adaptive electronic
- Tires - 245/75R/16 Toyo all-terrain
- Alternator - 14V 220A
- Chassis Battery - 12V 100Ah
- Hitch and Wiring - 7-pin wiring connector
Cab Conveniences
- MBUX Multimedia System w/ 10" Touchscreen
- Navigation
- Bluetooth® connectivity w/ audio streaming
- “Hey Mercedes” voice control
- Smartphone integration w/ hands-free function
- Multimedia interface w/ USB-C ports
- Driver and passenger swivel seats
- 360 degree rear view camera system
- Keyless ignition
- Air conditioning
- Power windows, door locks and mirrors
- Tilt / telescopic steering wheel
- Chassis battery quick-disconnect
- Overhead control panel w/ 2 reading lights
Safety
- Airbags – driver and passenger
- Distronic Plus® Adaptive Cruise Control
- Drive Away Assist
- Active Brake Assist
- Active Distance Assist Distronic
- Traffic Sign Assist
- Attention Assist
- Active Lane Keeping Assist
- Blind Spot Assist
- Crosswind Assist
- Tire repair kit w/ air compressor and repair liquid
- Locking fuel fill
- Undermount spare tire
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
