Floorplan - 2009 Keystone RV Everest 345S
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Your Price: $14,995
-
Sleeps 4
-
4 Slides
-
Rear Living AreaFront Bedroom
-
37ft Long
-
12,237 lbs

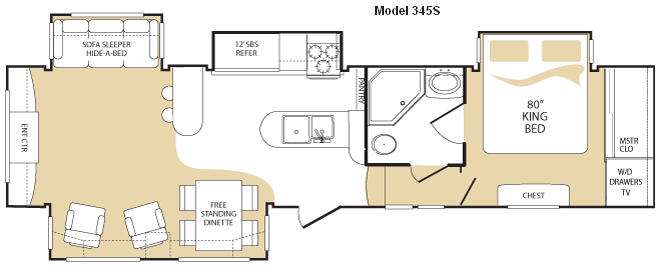

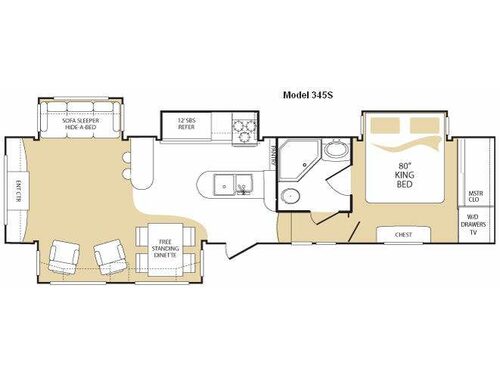

345S Floorplan


Specifications
Sleeps | 4 | Slides | 4 |
Length | 37 ft | Ext Width | 8 ft |
Ext Height | 12 ft 8 in | Hitch Weight | 2000 lbs |
Dry Weight | 12237 lbs | Cargo Capacity | 1763 lbs |
Fresh Water Capacity | 68 gals | Grey Water Capacity | 85 gals |
Black Water Capacity | 50 gals | Tire Size | 235/80R16E |
Furnace BTU | 35000 btu |
Description
Keystone Everest Fifth Wheel w/Quadruple Slides, Rear Living Area w/Wall Ent. Center, Overhead Cabinets, Hide-A-Bed Sofa Slideout, 2 Chairs & Free Standing Dinette Slideout, Counter with Stools, 12' Side-by-Side Refrigerator & 3 Burner Range Slideout, Center Counter w/Dbl. Kitchen Sink, Pantry, Side Aisle Bath w/Angle Shower, Lavatory, Double Bath Entrance, Front King Bed Slide, Closet, Dresser, TV & More.
Features
Standard Features (2009)
Exterior
- Everest-sized pass-thru storage with anti-skid flooring and 70” access door
- “Easy Tow” hi-gloss fiberglass front cap featuring:
- 30% more turning radius
- 18% better aerodynamics
- “Hitch Assist” back-up mirror
- Long lasting LCD hitch lights
- Hi-gloss fiberglass rear cap
- Reverse (back-up) lights
- One-piece, polypropylene underbelly
- “Thermashield 37” holding tank enclosure
- Triple ducted, heated holding tanks
- All-in-one “Waterworks” exterior utility center featuring:
- “Easy Siphon” winterization system
- Water heater by-pass
- Enclosed low point drain shut-off valves
- Heat vent for cold weather protection
- Black tank flush
- Soap dispenser
- 16” E-load radial tires with 8 lug wheels
- Heavy duty 6000 lb. axles
- Easy-Lube axles
- Dexter “EZ Flex” rubberized suspension system featuring:
- Improved impact absorption
- Improved axle equalization
- Greasable “wet” bolts
- Long lasting ½” thick shackle plates
- Long lasting bronze bushings
- “No Sweat” vented attic system
- 50 AMP service with detachable power cord
- Hydraulic selector valves for slide-outs
- Easy open triple steps
- Extra large entrance door: 6’4” high and 30” wide
- Power front landing jacks
- Easy-to-access, front-facing snap jack pins
- Gutters with rain spouts
- Rear ladder
- Outside entertainment package featuring:
- Two exterior stereo speakers
- Cable TV hook-up
- 110V outlet
- Tinted (80%) safety glass windows
- Glazed maple cabinet doors with 10 year warranty
- Glazed maple drawer fronts
- Upgraded appliance package featuring:
- 12' side by side double door refrigerator
- 30" OTR Convection microwave oven
- Sealed burner range with 22” oven
- 12 gallon 110/12V water heater with DSI
- 15,000 BTU ducted air conditioner with Quick Cool
- 35,000 BTU furnace
- Digital climate control center
- Heavy duty, residential ball bearing drawer guides
- 20” deep drawers where applicable
- Pre-drilled, screwed maple cabinetry with lumbercor styles
- Solid “Bird’s Eye” maple slide trim
- CorianTM residential kitchen counter tops
- Stainless steel kitchen sink with large, deep bowls
- High rise, single lever kitchen faucet
- Space-saver silverware tray
- Message center (select models)
- Refrigerator and stove storage drawers (select models)
- Flush-mounted range cover
- Sliding pots/pan storage
- Jensen AWM970 AM/FM stereo, CD and DVD player with surround sound
- Optimum Lighting Package featuring:
- Flush mounted halogen lights
- Directional can lights at sofa with switch
- 12V designer wall lights
- 12V under-cabinet dinette light
- Directional can lights above bed with switch
- “Sleep and Store” air mattress sofa
- 4 high back dinette chairs with storage seats
- 5-Way Free standing dinette table with 2 expandable leaves and sliding tabletop with storage
- Digital TV antenna with built-in amplifier
- Dual cable and satellite ready TV hook-ups
- Extra tall 6’5” main slide room height
- Day/night shades
- Ceiling fan with light kit
- Create-A-Breeze roof vent in kitchen with push button operation
- Telephone jack
- LP leak detector
- Monitor panel
- 38” garden shower with molded seat
- One-piece, marble-finished shower surround
- Translucent glass shower door and enclosure
- Residential handheld massaging shower head
- Skylight over shower
- Solid-surface lavatory counter top
- Porcelain foot-flush toilet
- Single-level master bedroom suite (no step from bath to bed)
- Residential king size bed (most models)
- Innerspring pillow-top mattress
- Residential style headboard
- Residential style chest of drawers in bedroom
- Quilted bedspread and pillows
- Gel-coated fiberglass exterior
- 1/8” Luan wood backer
- Second layer 1/8” Luan wood backer with staggered seams
- Hi-density block foam insulation
- Radius window corner blocks
- 2” Welded aluminum side wall studs
- Fiberglass batten insulation
- Molded, high-gloss fiberglass front and rear caps
- Metal backing strips
Roof Construction (R-15)*
- Aluminum radius roof corner molding wrap
- One-piece EPDM rubber roof with 12-year warranty
- 3/8” Fully walkable roof decking
- Double fiberglass batten insulation*
- 5” Snow load galvanized steel roof trusses
- 1/8” Ceiling decking with vinyl protection
Floor Construction (R-30)*
- Residential grade carpet with stain protection
- Residential grade carpet padding
- 5/8” Seamless wood floor decking with 25 year limited warranty
- Double fiberglass batten insulation*
- Darco wrap (main floor)
- “Thermashield 37” holding tank insulation
- One-piece, fluted polypropylene fully enclosed sub-floor
- 3” Floor joists on 12” - 16” centers
Tires and Chassis
- 10” Steel “powder coated” I-beam frame
- 16” E-load radial tires
- EZ lube, 8-lug axles
- Dexter EZ Flex rubberized suspension system
* Included in Summit Package.
Options
- Fireplace (most models)
- Slide-out awnings
- Electric rear stabilizer jacks
- Wire and brace for 2nd A/C in bedroom
- Dual A/C package
- Create-a-Breeze roof vent - bedroom
- Garden tub IPO garden shower
- Generator prep
- Hi-gloss fiberglass sidewalls
- Recliner/glider – one or two
- Euro-style reclining chair – one or two
- Booth dinette (most models)
- 2 bar stools
- Ottoman with storage
- End table and table lamp
- Central vacuum system
- CSA construction
- Dual pane windows
- Includes the following pre-selected items:
- 32" LCD television (305T, 3401, 344S, 348R)
- 42" LCD television (345S, 352L)
- 19" under carriage spare tire kit
- Aluminum wheels
- Double insulation in roof and floor
- Washer/dryer prep
- Water purifier
- Exterior shower
- Two solid surface sink covers
- Carbon monoxide detector
- Electric rear stabilizer jacks
See us for a complete list of features & available options!
All standard features and specifications are subject to change.
